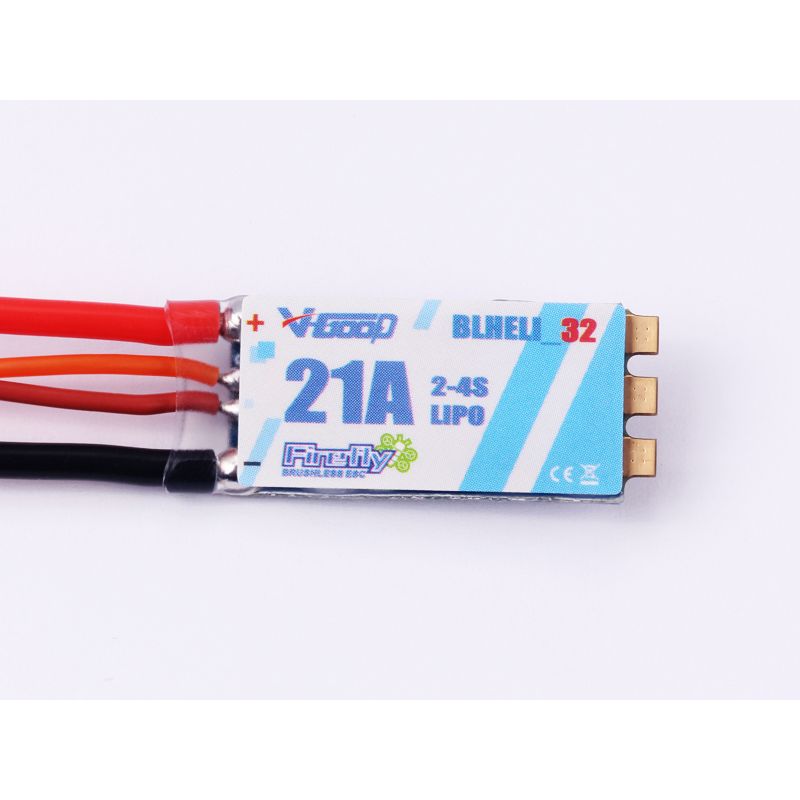

Sunrise/V-Good 21A OPTO 32 Bit 2-4S BLHeli_32

Sunrise/V-Good 21A OPTO 32 Bit 2-4S BLHeli_32

Specification

• BL-32   21A
• Con.Current:21A
• Peak Current(10s):26A
• LBEC:NO
• SBEC:NO
• Lipo:2-4s
• Programming :YES
• Weight:2g
• Size(PCB):25X12mm

Features:

• BLHeli_32 firmware is the third generation BLHeli, following base BLHeli and BLHeli_S.
• BLHeli_32 is designed for superior functionality and performance, primarily in multirotors and runs on ARM 32bit MCUs.
• All codes use damped light mode.
• Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling.
• The code supports features to prevent sync loss. There are tuneable parameters that can make the code run well even in the most
• in normal operating environments.
• The code supports regular 1-2ms pulse width input, as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us) and Multshot (5-25us).
• Dshot signalling is supported at any rate up to at least Dshot1200. The input signal is automatically detected by the ESC upon power up.
• The code also supports a beacon functionality, where the ESC will start beeping after a given time of zero throttle. This can be very useful for finding lost crafts.
