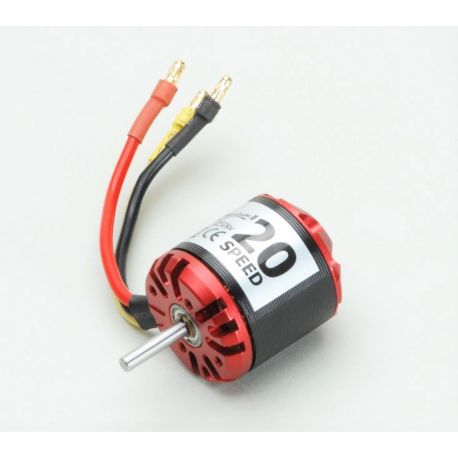

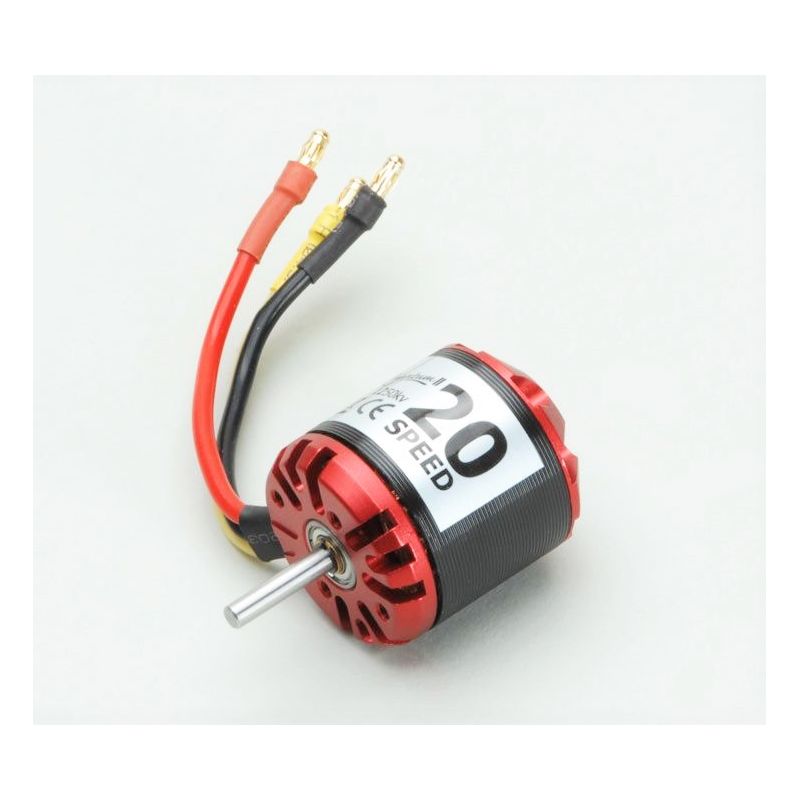

Ripmax Quantum II 20 Speed Brushless Motor

Ripmax Quantum II 20 Speed Brushless Motor M-Q2-20

The Ripmax Quantum II range of electric motors are designed to offer performance, efficiency, build quality and value-for-money in a wide array of sizes. Every motor includes a mounting kit comprising of a tough metal motor mount and a CNC metal prop adaptor that bolts to the can. For easy connection to the speed controller the motor comes pre-wired and the corresponding gold connectors are supplied for the ESC.

This .20 size speed motor is designed as an equivalent to a .20 2-stroke glow IC motor when used in higher speed applications such as the Ripmax Dagger (A-ARTF6906).

• .20 Speed 2-Stroke Equivalent Setup:
• 4S 2200mAh Li-Po
• 60A Brushless ESC
• 7x7" Propeller

Specification

• Connectors: Gold 4.0mm Bullets
• Length: 50mm
• Weight: 151g
• LiPo: 3 - 4S
• Speed Controller: 40 - 60A (Rec.)
• Diameter: 35mm
• KV RPM: 1250
• Shaft dia: 4mm
