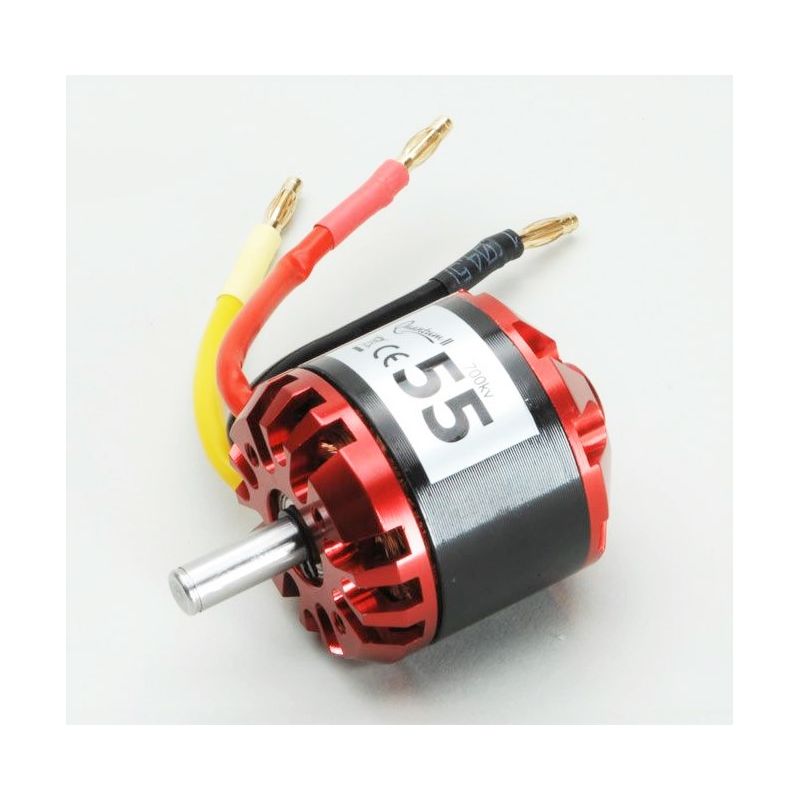

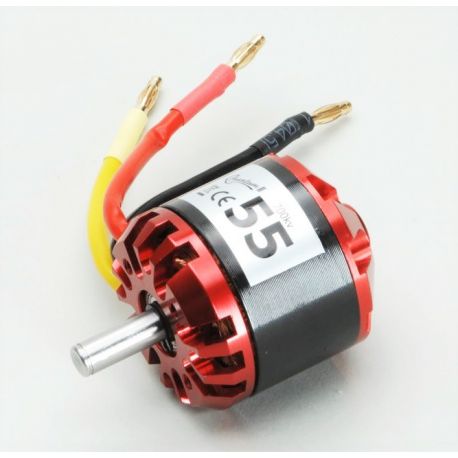

Quantum II .55 Brushless 700KV Motor

Ripmax Quantum II .55 Electric RC Plane Brushless Motor M-Q2-55

The Ripmax Quantum II range of electric motors are designed to offer performance, efficiency, build quality and value-for-money in a wide array of sizes. Every motor includes a mounting kit comprising of a tough metal motor mount and a CNC metal prop adaptor that bolts to the can. For easy connection to the speed controller the motor comes pre-wired and the corresponding gold connectors are supplied for the ESC.

This .55 size speed motor is designed as an equivalent to a .55 2-stroke glow IC motor and is suited to models such as the Ripmax Chris Foss Wots Wot ARTF (A-CF007).

• .55 2-Stroke Equivalent Setup:
• 5S 4500mAh Li-Po
• 60A Brushless ESC
• 12x8" Propeller

Specification

• Connectors: 4mm Gold Bullet
• Weight: 346g
• LiPo: 3 - 8S
• Speed Controller: 60 - 80A Brushless (Req.)
• Diameter: 40.2mm
• KV RPM: 700
• Power Output: 1350W Max
• Shaft dia: 8mm
