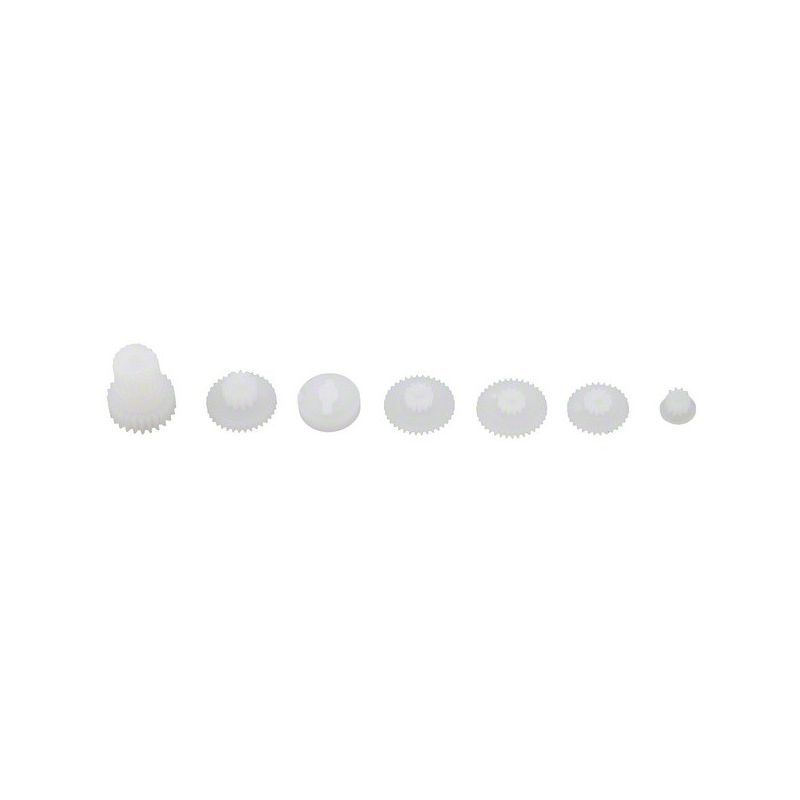

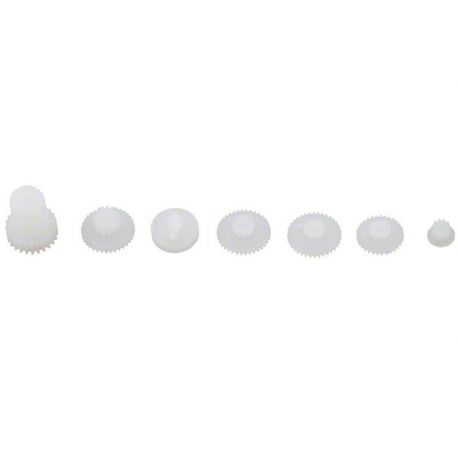

3.5-Gram DS35 Digital Super Sub-Micro Gears

3.5-Gram DS35 Digital Super Sub-Micro Servo EFLRDS351

Key Features

•     Digital amplifier for superior accuracy, response and holding torque
•     High speed, 0.05 sec @ 60° @ 4.8V for quick control response
•     Precise centering - less than 1°
•     Lightweight, just 3.5 grams
•     Includes convenient clip mount and mounting hardware
•     Includes multiple servo arms including an extra-long 3D servo arm for extreme throws
•     JST-ZHR (1.5mm) connector is compatible with Spektrum Nanolite AR6300 & AR6310 receivers
•     Optional connector adapters are available to work with most major brand receivers

Overview

Digital high speed, precise centering servo is perfect for electric indoor sub-micro flyers, slow flyers, small park flyers, high-performance 3D models, sub-micro electric helicopters, and hand launch gliders.

Product Specifications

• Size Category:     Minis and Micros
• Type:     Digital
• Application:     Sub-micro and Micro-sized airplanes and helis
• Torque:     4.0 oz-in (0.29kg-cm) @ 4.8V; 3.2 oz-in (0.23kg-cm) @ 3.7V
• Speed:     0.05 sec/60° @ 4.8V; 0.06 sec/60° @ 3.7V
• Length:     0.68 in (17.5mm)
• Width:     0.25 in (6.4mm)
• Height:     0.85 in (21.8mm)
• Weight:     0.125 oz (3.5g)
• Motor Type:     Coreless
• Connector Type:     JST-ZHR (1.5mm)
• Gear Type:     Nylon
• Current Draw Idle:     30mA @ 4.8V; 20mA @ 3.7V
• Current Draw Stall:     350mA @ 4.8V; 230mA @ 3.7V
• Voltage:     3.0V-5.0V DC
• Deadband:     <1μs
