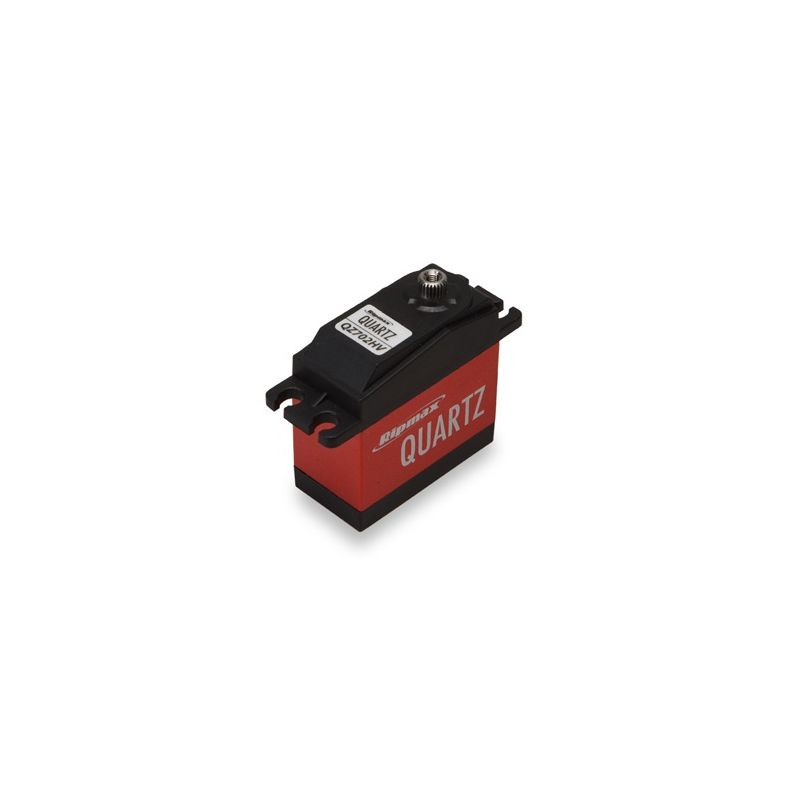

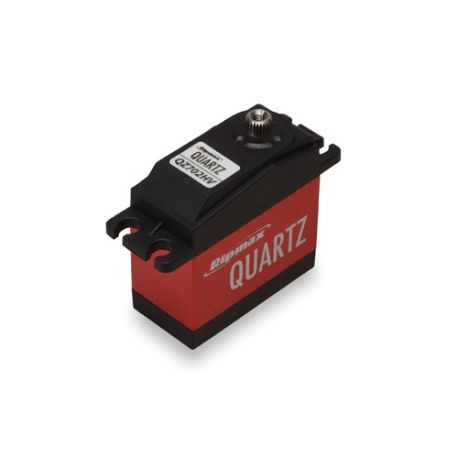

Quartz QZ702 Digi HV Stan Servo 30.0kg 0.15s

Ripmax Quartz QZ702 Digital HV Standard Servo 30.0kg 0.15s P-QZ702HV

A high quality, high performance digital servo that is intended to appeal to discerning modellers that only want the best. Suitable for High Voltage installs but can also happily run with 6.0V power.

Tough ball-raced output, coated metal gears and digital amplifier provides the perfect solution.

The case centre is CNC machined from aluminium for the very best in strength and rigidity. The upper and lower case sections are made from plastic to ensure that this high power servo comes without the high price tag.At 8.4V it suplies a massive 30.0Kg torque at an impressive 0.15sec/60° speed.

Specification

• Case: Aluminium & Plastic
• Weight: 66g
• Bearings: Twin Bearings
• Dimensions: 40.5 x 20.0 x 40.5mm
• Gear Type: Metal - Aluminium with TiCn & Brass
• Speed: 0.17 sec @ 6.0v
• Speed: 0.15 sec @ 8.4v
• Torque: 24.0 kg/cm at 6.0v
• Torque: 30.0 kg/cm at 8.4v
• Voltage: 4.8 - 8.4v
