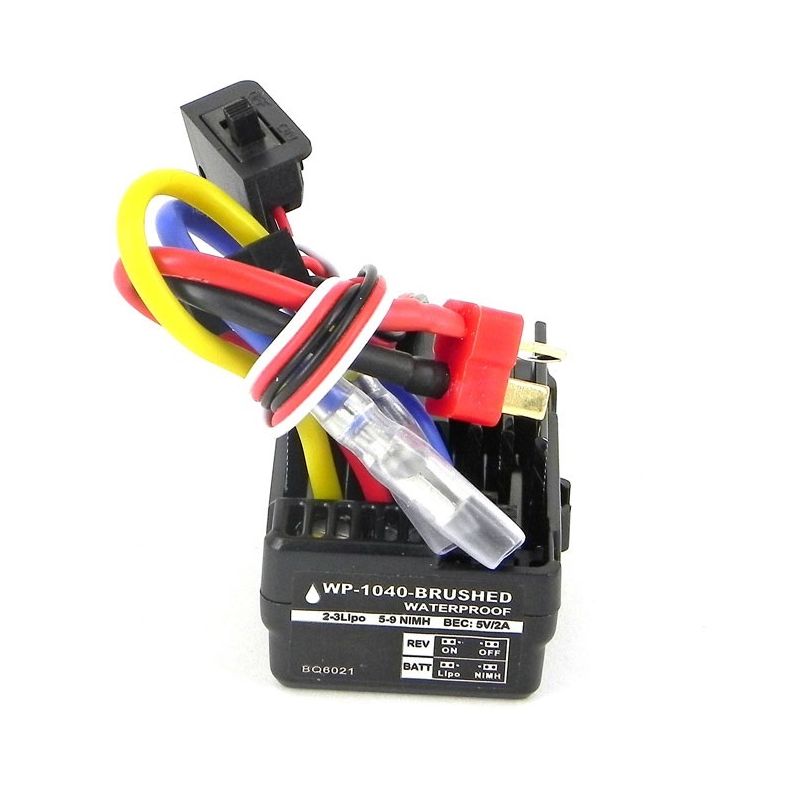

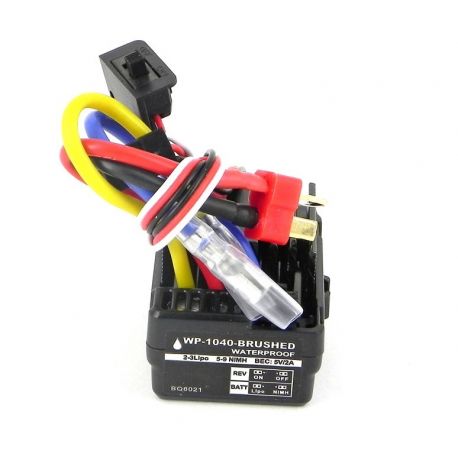

WP1040 40A Waterproof Brushed ESC Deans

WP1040 40A Waterproof Brushed ESC Electonic Speed Controller

Features:

1.1 One-piece design (built-in electrolytic capacitor), completely waterproof and dustproof, adapt to various climates;
1.2 With "one-way / two-way / two modes of operation, for a variety of models
1.3 High quality materials with strong current withstand capability;
1.4 Strong BEC output capability, surpassing other competitive products;
1.5 Automatic throttle stroke calibration, easy to use, especially suitable for novices;
1.6 Using the jumper cap to set the ESC parameters, it is simple and clear;
1.7 With multiple protection functions such as lithium voltage protection, over temperature protection, and throttle signal loss protection;

Specifications：

• 1040 40A Brushed ESC
• Cont./Burst Current: ①Forward：40A/180A ②Backward：20A/90A
• Input：2-3s Lipo，5-9 Cells NiMH
• Cars Applicable：1/0 on-road，off-road Buggy，Truggy，SCT，Crawler，Tank & Boat
• Motor Limit： 2s lipo or 5-6cells NiMH ：540 or 550 size motor RPM＜[email protected]
• ②3s lipo or 7-9cells NiMH ：540 or 550 size motor RPM＜[email protected]
• Resistance：Forward-0.002Ω Backward-0.004Ω
• Built-in BEC:2A/6V(Linear mode BEC)
• Dimension&Weight:46.5*34*28.5mm/65g
• Run mode：forward & brake & reverse mode
• forward &reverse mode
• forward & brake

Package List:

1 * ESC

1 * Adhesive Label Paper

1 * Cable Binding Tape

1 * Manual (English)
