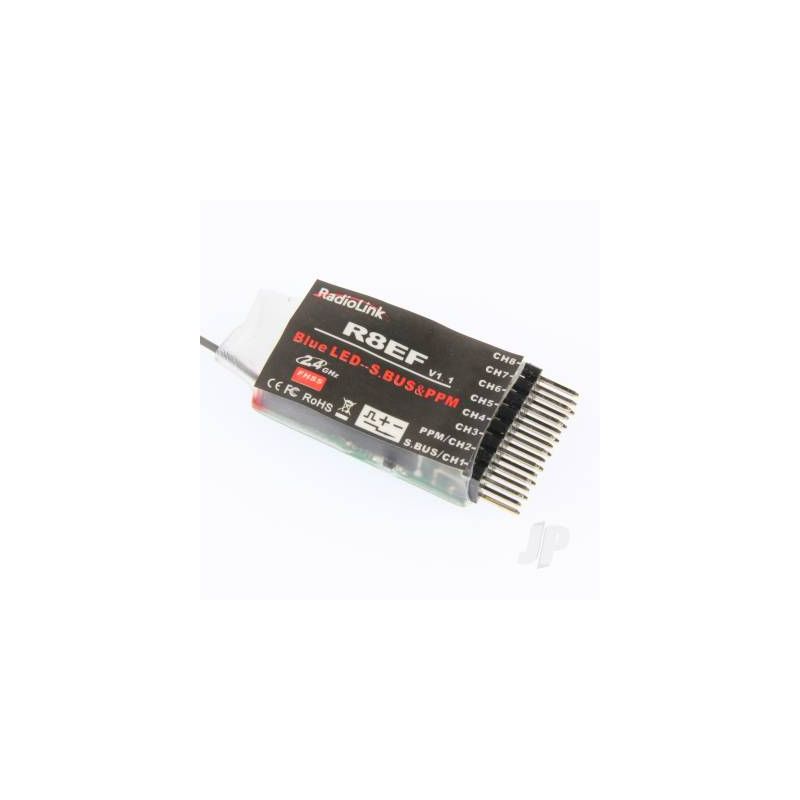

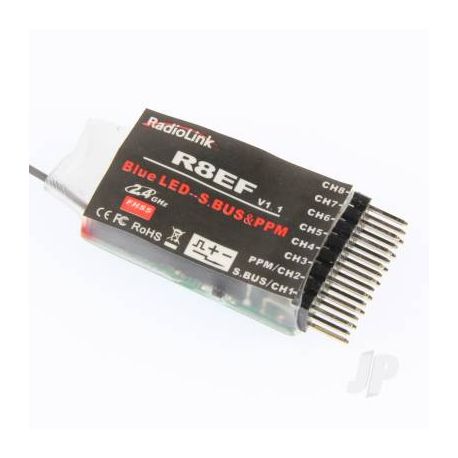

RadioLink R8EF 8-Channel Receiver 2.4GHz V1.2 RLKR081005
Key Features
- Compatible with T8FB Tx Only
- Channels: 8 channels
- Working voltage: 4.8v - 10v
- Working current: 30mA (input voltage 5v)
- 2048 precision: 0.5us per section
- Control distance: 500m ground and 1000m air, actual control distance depends on the environment used
- S-Bus: output CH1
- PPM: output CH2
- PWM: output CH1 - CH8, can also be used is conjunction with S-Bus from CH3 - CH8
Receiver Technical Specifications
- Weight 7g 0.25oz
- Shipping Weight 0.01kg 0.02lbs
- Product Height 11mm 0.43in
- Product Width 21mm 0.83in
- Product Length 49mm 1.91in
