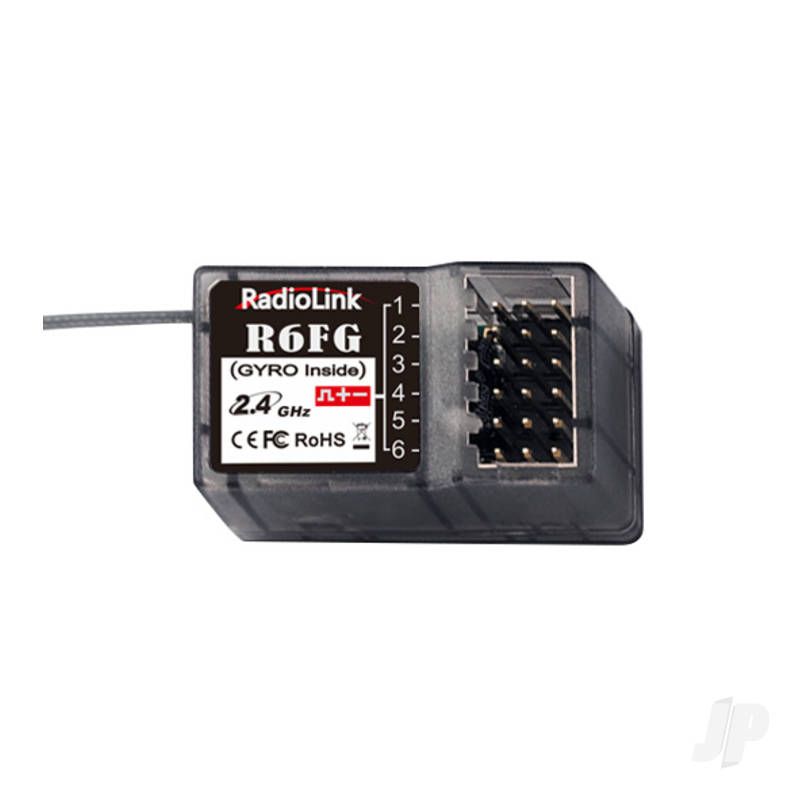

RadioLink R6FG 6-Channel Receiver with Gyro

RadioLink R6FG 6-Channel Surface Receiver with Gyro Function RLKR061001

Radiolink R6FG, 2.4GHz 6 channels receiver, gyro integrated and HV servo supported.
Compatible with Radiolink 6 channels pistol grip radio RC6GS, 4 channels pistol grip radio RC4GS, RC4G, RC3S and 8 channels transmitter T8FB.

Binding

1. Put the transmitter and the receiver close to each other within 50 centimeters.
2. Turn on the transmitter, then power on the R6FG.
3. There is a black button on the R6FG, press the binding button in one second until the receiver light starts blinking and release, after about 8 times blinking, match code success when receiver signal LED always on.

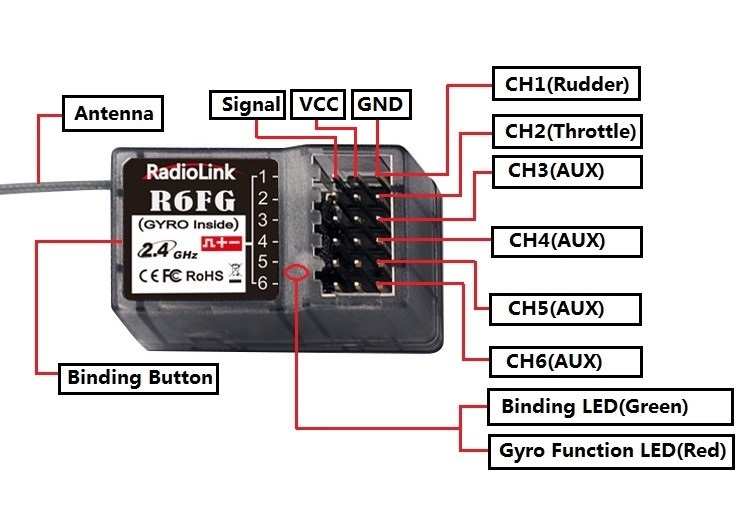

4. Attention: R6FG default have not turn on the gyro function. Make sure the R6FG keep motionless when power on it, because the R6FG will do the self-test. R6FG with two indicate LED, green LED on indicate normal working mode while both green and red LED on indicate gyro function working mode.

Parameters Introduction

Gyro enabled
Gyro function is default disabled, and it enters post indication status. There are two indicators on the receiver. The green one shows the receiver status and the red one is for gyro. If both green and red LED turns on, the gyro function is enabled. If just green LED turns on while red LED turns off, gyro function is disabled.

Gyro reverse
Same as the airplane has reverse, gyro for car has reverse as well. Reverse corrections require correct gyro reverse setup.

Gyro function setup

1. Enable Gyro
Press binding key three times (interval less than 1 second), the red LED will flash three times, indicating that gyro is enabled.

2. Gyro Reverse
Set the gyro forward, turn the car right or left to see whether gyro functions. The wheel will turn left when the car is turned right and the wheel turns right when the car is turned left. If the gyro acts counter, press the binding key twice, the RED LED flashes twice, the gyro reverse is corrected.

Gyro Sensitivity Setup
Gyro sensitivity is default to adjust by channel three (factory set VR switch), turning the VR switch clockwise to raise sensitivity and anti-clockwise to decrease. Gyro sensitivity can setup in menu (20: GYRO) if the VR switch have to use for other function setting.

Receiver Version Introduction
All of the R6FG product before R6FG V2 have to setup Gyro forward.
R6FG V2.0 that have product before 3/29/2018 have to setup Gyro forward.
R6FG V2.0 not only cancelled the Gyro enabled forward function that make gyro function enabled both forward and back, but also the gyro has added the software filtering algorithm and improve the PID algorithm that make the sensitivity more precision. New version R6FG improves the stability at the high gyro sensitivity mode that greatly improves the adaptability to RC car types and sites. New version R6FG can achieve professional-level performance even use on drift car.

Installment of receiver antenna

1. The antenna must be kept as straight as possible. Otherwise it will reduce the effective range.
2. Large model aircraft may of some metal part interfering signal; in this case the antennas should be placed at both sides of the model. Then the best RF signal condition is obtained at any attitude.
3. The antennas must be kept away from conductive materials, such as metal and carbon by at least a half inch. The coaxial part of the antennas does not need to follow these guidelines, but do not bend it in a small radius.
4. Keep the antennas away from the motor, ESC, and other noise sources as much as possible.
5. The receiver can be packed by sponge or foam for shocking proof when it is installed to the model.
6. After all of the above steps finished, now the program functions to assure it under control of transmitter with a right connection.

Technical Parameters

• Frequency: 2.4GHz ISM band(2400MHz~2483.5MHz)
• Size: 35*20*13mm
• Channel: 6 channels
• Model: cars/boats
• Modulation mode: GFSK
• Spread spectrum: FHSS
• 10 modes memory storage
• Antenna length: 200mm
• Control distance: more than 400 meters
• LCD screen: 128*64 resolution, LCD back light
• Power supply: 4.8~10.0V DC
• RF power: <10dbm
• Channel resolution: 4096
• Work current: 30mA
• Compatible transmitters: RC6GS, RC4GS, RC4G, T8FB,T8S, RC3S(Stop Production)
