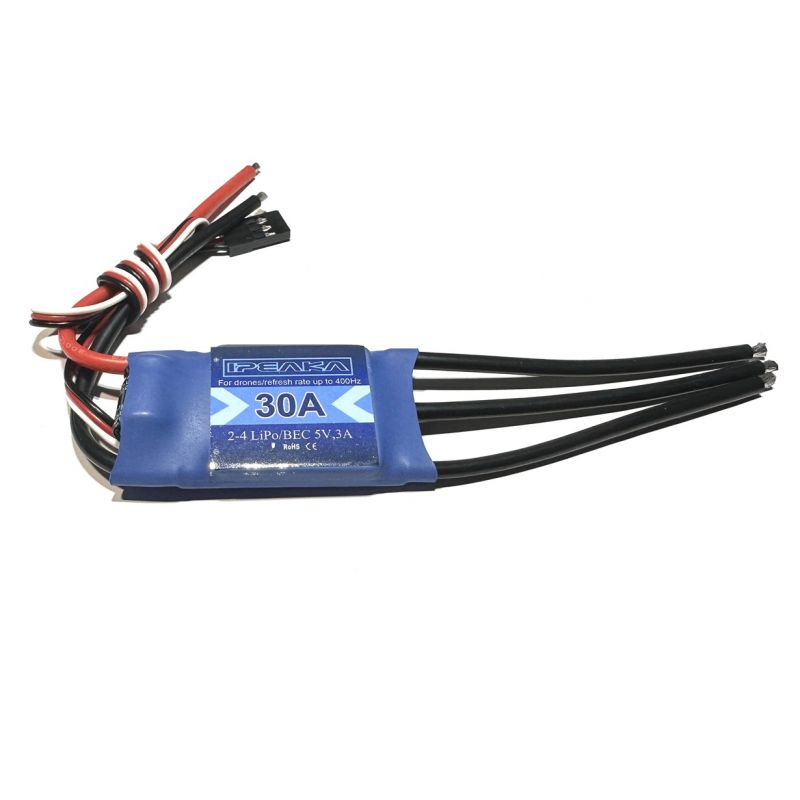

iPeaka SK 30A ESC 400HZ (2-4S)

iPeaka SK 30A ESC 400HZ 3.5mm Gold Connector

Features of the iPeaka SK series Speed Controllers include:

• Extremely low output resistance for efficient operation
• 3-stage protection: Low Voltage Cutoff, Over-Heat Protection & Signal Loss
• 3 Start Modes available: Normal, Soft and Very Soft
• Adjustable Throttle Endpoints to match virtually all transmitter models
• Smooth linear throttle operation for precise control
• High RPM capability: 210,000 (2-pole), 70,000 (6-pole), 30,000 (14 pole)

Specifications:

• Input Voltage ..................... 6-18.8 VDC, 2-4 Li-Po cells
• Input  rate range................  50-400Hz
• Output Current ................... 30 Amps Continous, 40 Amps Burst (10 Sec.)
• BEC Output ...................... 5.0 Volts at 3 Amps
• Dimensions ........................ 48 x 26 x 11 mm
• Weight ............................... 28g

Requires: bullet connecters and battery adapter plug.

Application:

• Multirotor
• Plane
