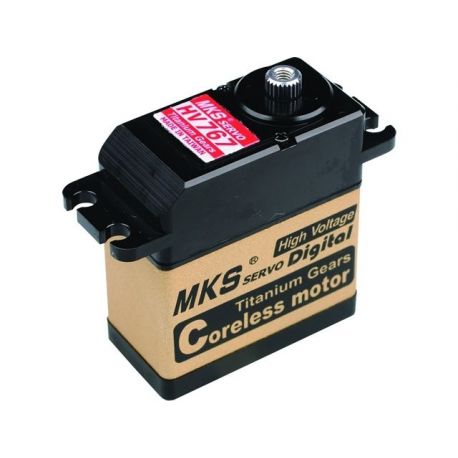

MKS HV-767 MG Digital HV 0.118 sec/31kg

MKS HV-767 Titanium Gear High Torque Digital HV Servo (0.118 sec/31kg-cm)

Ideal to use for CCPM servos on Align T-Rex 600/700, CompassModel 6HV/7HV and other 90-class helicopters.

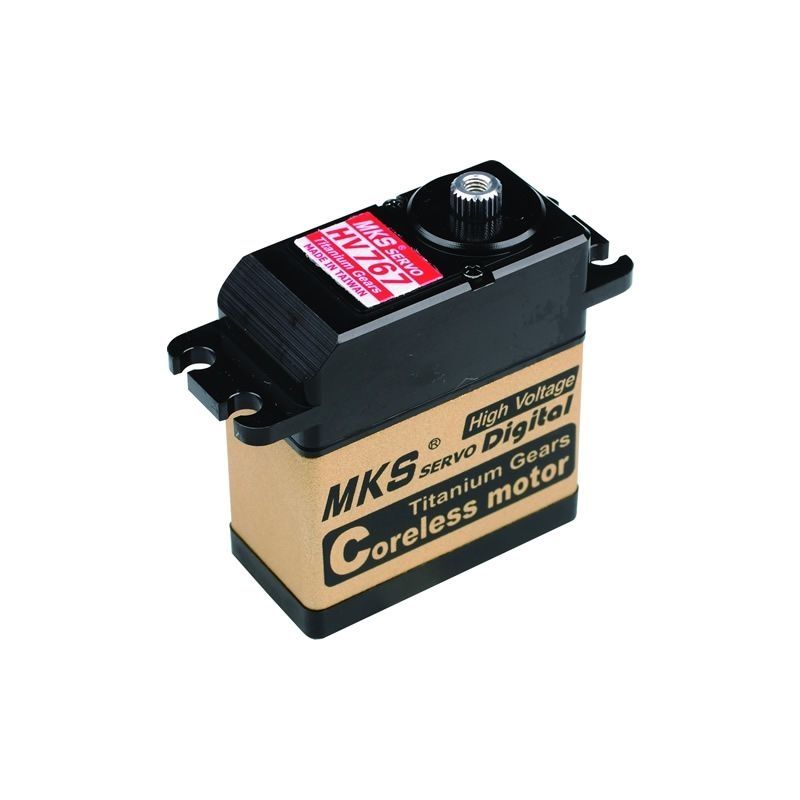

This is the MKS HV-767 Titanium Gear High Torque Digital Cyclic Servo. The HV-767 servo is recommended for high torque airplane, boat and flybared cyclic servo applications. MKS High Voltage Servo's are lightning fast, extremely strong and operate with little noise. MKS HV servos feature exclusive low current draw motors with overload protection that have been developed exclusively for high voltage applications, as well as an aluminum case for the ultimate in durability and rigidity. The result is a servo that provides stump pulling torque, with exceptional agility and astonishing performance.

Specs:

• Dead band: 0.0008 ms (Default)
• Control System: +Pulse Width Control
• Working frequency: 1520μs / 333hz
• (RX) Required Pulse: 3.5 ~7.4 Volt Peak to Peak Square Wave
• Operating Voltage: 6.0 ~7.4 V DC Volts
• Operating Temperature Range: -10 to + 60 Degree C
• Operating Speed (6.0V): 0.145 sec/60° degrees at no load
• Operating Speed (7.4V): 0.118 sec/60° degrees at no load
• Stall Torque (6.0V): 347.2 oz/in (25.00 kg.cm)
• Stall Torque (7.4V): 430.5 oz/in (31.00 kg.cm)
• 360° Modifiable: NO
• Motor Type: Coreless Motor
• Potentiometer Drive: Indirect Drive
• Driver Type: FET
• Bearing Type: Dual Ball Bearings
• Gear Type: Titanium Gears
• Programmable: NO
• Connector Wire Length: 15.0cm (5.9")
• Dimensions: 40x20x45mm (1.57x0.97x1.77")
• Weight: 77.9 g (2.75 oz)
