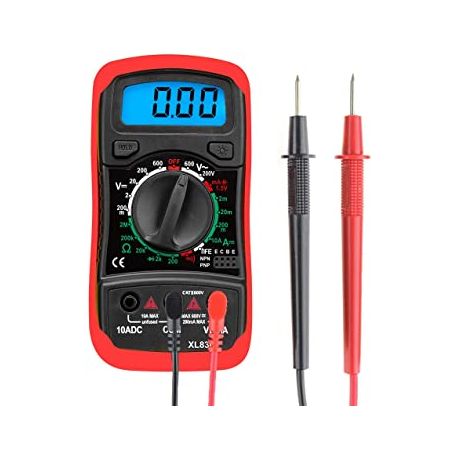

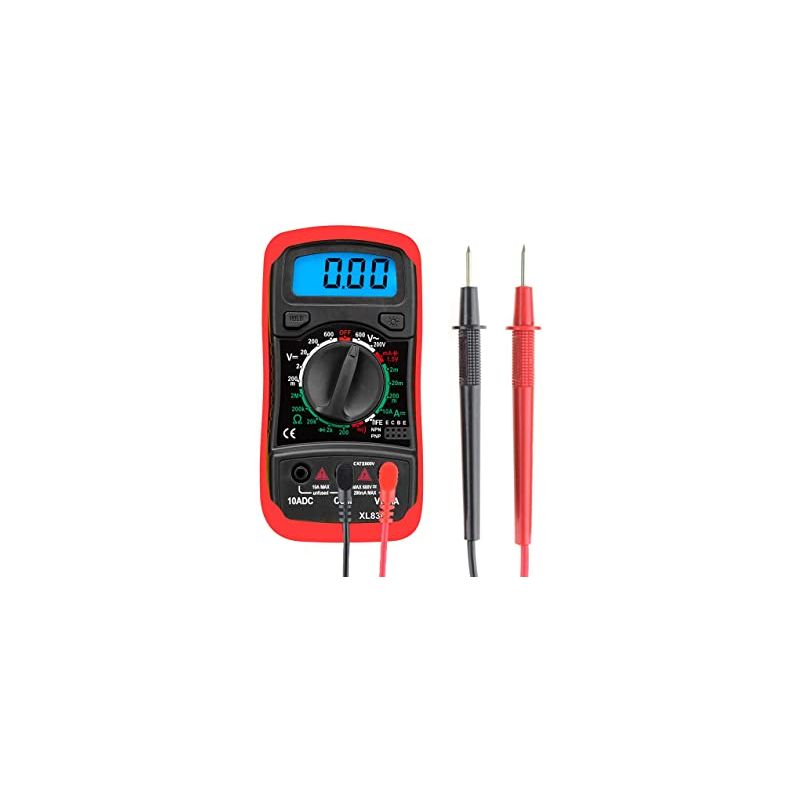

Digital AC/DC Portable Multimeter

DT182 Digital AC/DC Portable Multimeter XL830L

Designed for perfect fit.

• High quality 100% brand new.
• The Digital Multimeter is a practical tool for electrician use. It is easy to operate and the readings indicated directly on the screen. It can be use to overhaul all kinds of circuit boards. It is also an ideal teaching instrument for students.
• 15mm high LCD Display.
• Max display: 1999, Auto polarity display.
• Portable and compact design, overload protection on all ranges.
• Diode assembly test/Transistor P-N junction test/Transistor HFE test.
• Continuity test with buzzer sound in circuit.
• Low battery voltage indication.
• DC Voltage: 200mV/2V/20V/200V ±0.5%, 600V ±0.8%.
• AC Voltage: 200V/600V ±1.2%.
• DC Current: 200μA/2mA/20mA ±1%, 200mA ±1.5%, 10A ±3%.
• Resistance: 200&;/2K&;/20K&;/200K&;/2M&; ±0.8%.
• Fuse protection: F-200mA/250V.
• Operating Temperature: -0 to 40.
• Overrange Indication: Only figure "1" on the display.
• Polarity Indication: "-" displayed for negative polarity.
• Low Battery Indication: - /+ display.
• Battery: 9V (Battery not include).
• Dimension: Approx 138mm x 69mm x 31mm.

# Battery won't be included in shipping becased of new air post regulation.

Package includes
1 x LCD Digital Multimeter.
2 x Test Loads.
1 x Orange Back Cover.
1 x English User Manual.

Spec:

AC Voltage:

• 200-500V ±1.0%
• Measuring Resistance Range:
• 200-2000-20K-200K-2000KΩ ±1.0%
• Operating Mode:
• Manual measurement of current and voltage resistance HFE

Measuring Inductance Range:

Display Type:

• Digital Display
• DC Current:
• 2000u-20m-200mA ±1.8%
• DC Voltage:
• 200m-2000m-20-200-500V ±0.5

Measuring Capacitance Range:

Dimensions:

• 100x50x23mm
• Operating Temperature:
• 0 - 50 ℃

note:
whitout battery, 3 1/2 digital LCD screen, maximum display value 1999
