Hi-Tec HS430BH (HV) Standard 0.14S 5KG

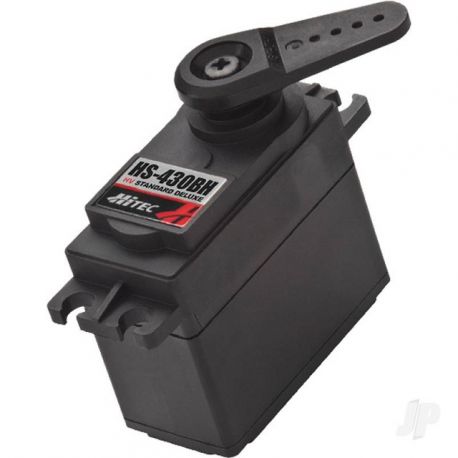

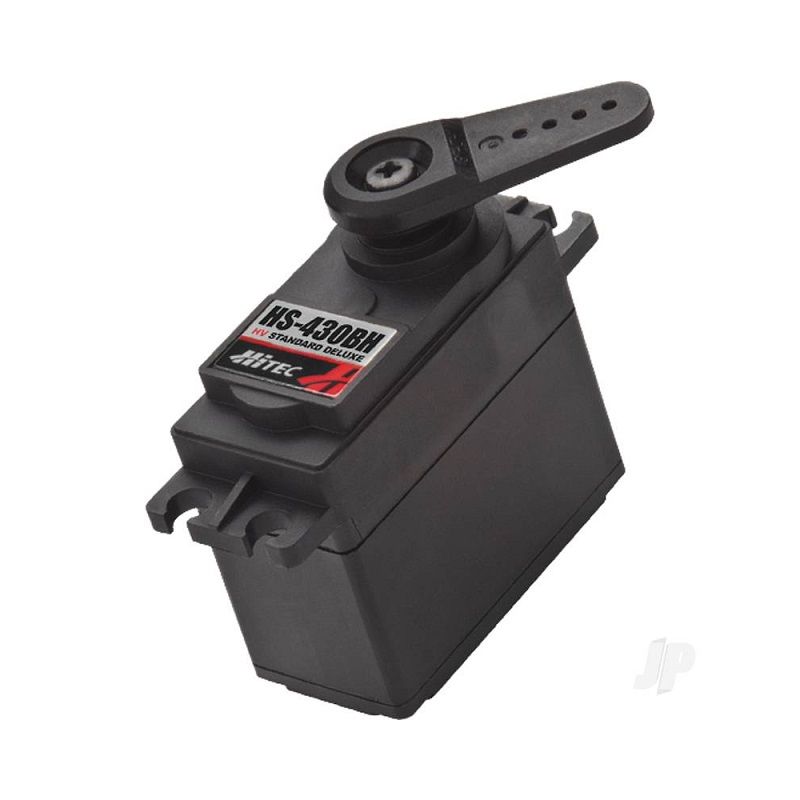

Hi-Tec HS430BH High Voltage (HV) Analog Standard Servo 2213262

Key Features

•     Hitecs lowest priced, 7.4V 2-cell LiPo capable servo
•     Dual resin gear train
•     Dual ball bearings
•     Durable and dependable construction
•     High voltage, high performance circuitry

Product Description

Based on the popular HS-425BB, our deluxe ball bearing HS-430BH is our budget-minded analogue servo capable of 6.0 to 7.4 volt operation. Designed with the novice hobbyist in mind, this low cost servo can be used for control surfaces on beginner aeroplanes and as a throttle or replacement servo for many ready-to-fly models. Its excellent durability and dependability make it a solid choice for beginner pilots.

Performance Specifications

• Operating Voltage Range (Volts DC)     6.0V ~ 7.4V
• Speed (Second @ 60°)     0.16 ~ 0.14
• Maximum Torque Range oz. / in.     57 ~ 69
• Maximum Torque Range kg. / cm.     4.1 ~ 5.0
• Current Draw at Idle     8 mA
• No Load Operating Current Draw     160 mA
• Stall Current Draw     850 mA
• Dead Band Width     8 µs
• Physical Specifications
• Dimensions (Inches)     1.59 x 0.77 x 1.44
• Dimensions (Metric)     40.6 x 19.8 x 36.6
• Weight (Ounces)     1.60
• Weight (Gram)     45.5
• Circuit Type     HT7003 Analog SMT
• Motor Type     3 Pole Metal Brush Ferrite
• Gear Material     Nylon
• Bearing Type     Top Ball Bearing
• Output Shaft (type / Ømm)     Standard 24
• Case Material     Plastic
• Dust / Water Resistance     N / A
• Connector Gauge (AWG) / Strand Count     25 / 40
