Power Hub BEC 5V/3A Output (2-6S LiPo)

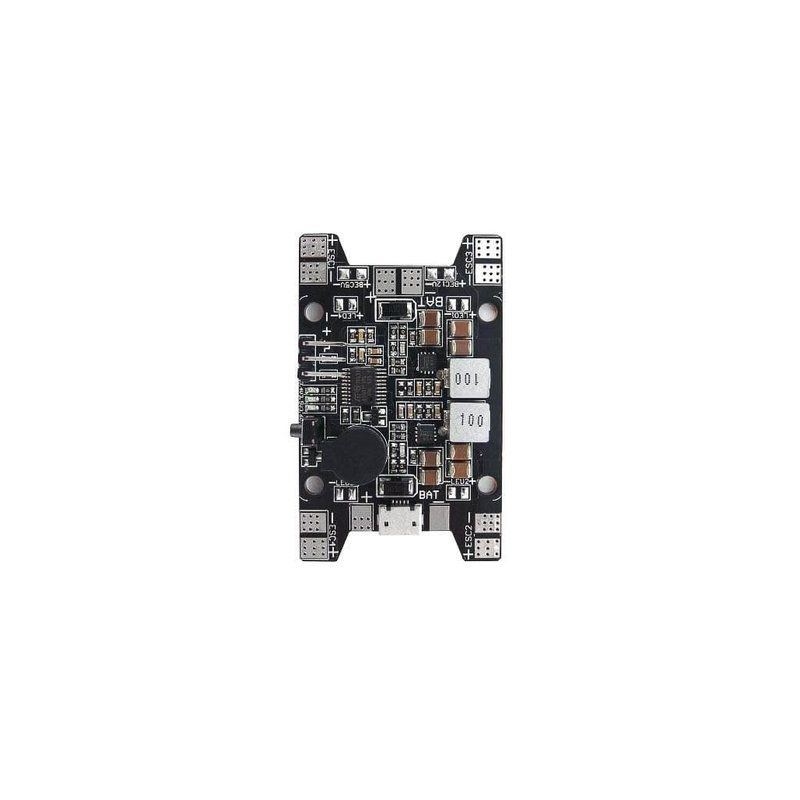

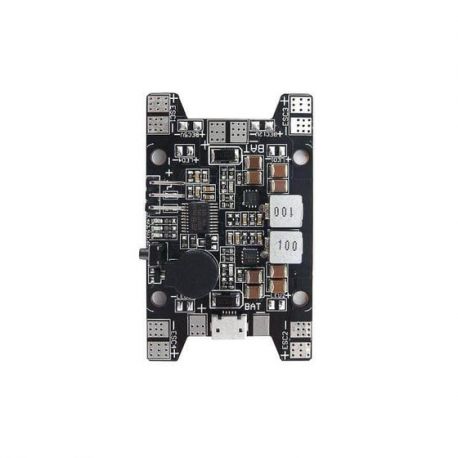

SkyRC Multi Function Power Hub SK-600097-02

This Power Hub comes with 6 functions. It is specially design for FPV Quadcopter for simplify wiring. Built-in 5V BEC can be connected to receiver or flight controller, Built-in 12V BEC can be connected to 12V camera (in order to use 12V BEC, 4-6S LiPo is necessary). Three flash modes of LED lights can be choosed with the toggle switch of transmiter. And the buzzer can also be triggered with the toggle switch, which can help you to locate the drone in tall grass or trees. The Power Hub also acts as a battery voltage monitor. When voltage gets below the threshold you set, the buzzer will beeping and LED light will blinking.

Features

• Power Distribution
• BEC 5V/3A Output (2-6S LiPo)
• BEC 12V/1.3A Output (4-6S LiPo)
• LED Light Controller
• Lost Plane Finder
• Low Voltage Alarm
• Micro USB Power Output for Camera

Specifications

• Working Voltage: 2-6S LiPo
• BEC Output: 5V/3A 12V/1.3A
• USB Output: 5V/2.1A
• Weight: 11.5g
• Dimension: 58x36x6.5mm
