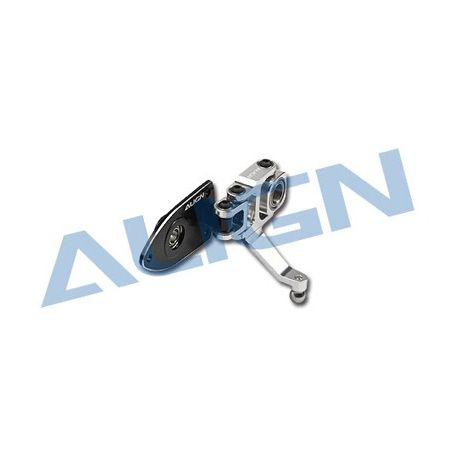

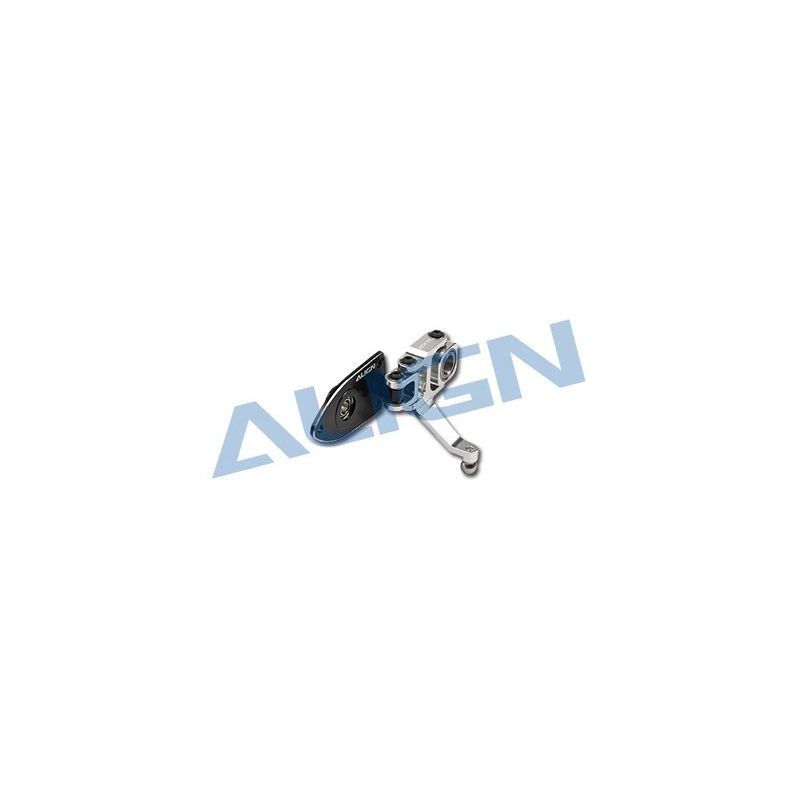

Align Trex 500ESP Metal Tail Pitch Assembly H50190T
Instruction
- Utilizes dual point attachment design for zero play and higher precision control feel.
- Constructed with CNC aluminum alloy, with precision ball bearing at moving points, improving structure rigidity and smoothness, allowing rudder control to be more precise and smooth.
- 6061-T6 Aluminum alloy material and CNC processed.
- Use for T-REX 500ESP
Specification
- I-shaped Arm × 1
- Mount Link × 1
- Metal plate(R) × 1
- Bearing 684ZZ C0 × 1(Φ4xΦ9x4mm)
- Bearing holder × 1(11.5x9x12.5mm )
- Linkage ball A(M2x3.5) × 1(Φ4.75x8.18mm)
- Bearing mount washer × 1(Φ6x Φ7.4x3mm)
- Bearing FMR52ZZ × 6(Φ2xΦ5xΦ6x2.3mm)
- Bearing MR106ZZ × 2(Φ6xΦ10x3mm)
- Socket button head screw × 6(M2x4mm)
- Slider Shaft (M6) × 1(Φ4xΦ4.7x15.7mm)
