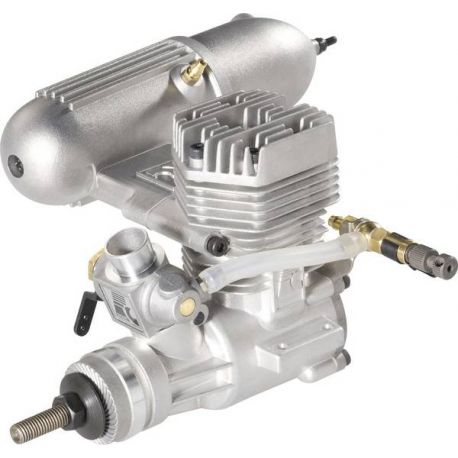

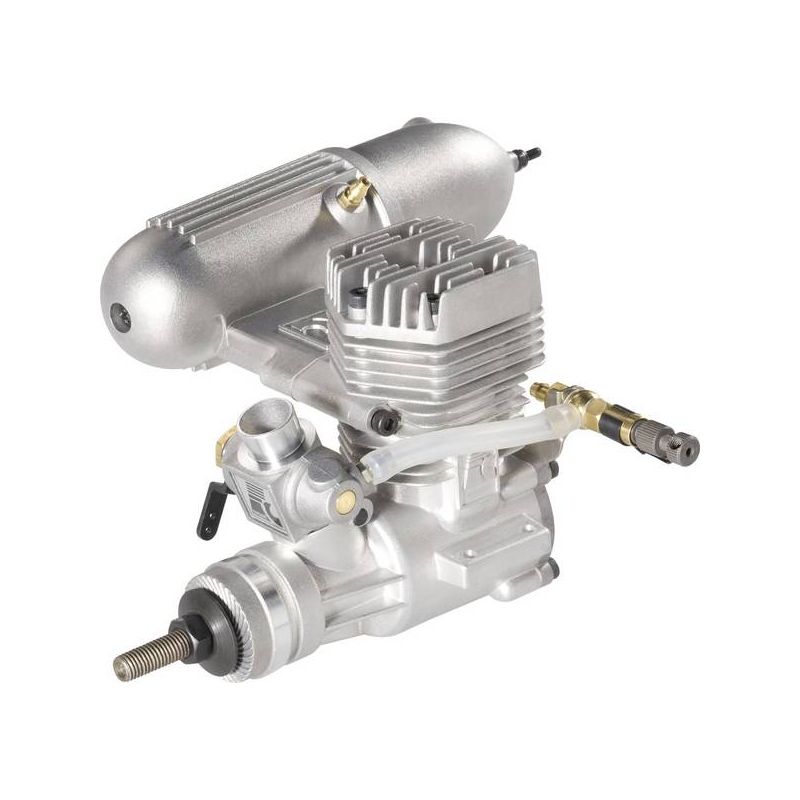

Force 46 ABC Aero Engine 7.45cc

Force 46 ABC Aero Engine (7.45cc) FORE-4601

A front induction, schneurle ported, .46cu. in. ABC R/C aero glow engine

Key Features

• ABC piston and liner.
• Powerful 7.45cc single cylinder two-stroke.
• 2,000 to 17,000rpm range.
• Schnuerle ported cylinder and liner.
• 10 x 6 to 12 x 5" propeller range.
• Uses glow fuel with between 5 and 15% nitromethane.
• Twin bearings.
• Twin needle carb with rear mounted main needle.

What's in the Box
1x Force 46 ABC aero engine.
1x Torpedo silencer with pressure nipple.
1x Silencer gasket.
1x Instruction and operating sheet.
2x Silencer mounting screws.
1x Propeller driver.
1x Prop nut and washer.
Needed to Complete
1x Medium cold glow plug.
1x 10 x 6 to 12 x 5" propeller.

Product Description
R/C flyers adore engines, and whilst the notion that electric flight will eventually rule the aeromodelling world may predominate, two-strokes are still the preferred choice for many, particularly in the quality mid-range club sector where, of course, the ubiquitous .46 – .53 two-stroke has so many uses. Well, as luck would have it, recent demand has encouraged Force Engines to step up and produce this beautifully-made single-cylinder, front induction, schnuerle ported, ABC, R/C glow engine.

Sporting a crisp and clean, bead blasted / painted crankcase, robust one-piece crankshaft – supported on a front (sealed) and rear (open) bearing – the Force 46 offers reassuring longevity with its aluminium alloy piston and hard chrome-plated brass liner, the latter schnuerle ported for improved efficiency and power. Add a proven twin needle carburettor, substantial high-volume silencer, cast high-grip knurled prop driver and rpm range of 2,000 to 17,000 and you have a perfect, and rather eye-catching R/C sport aero engine for a variety of propeller sizes in the popular 10 x 6 to 12 x 5” bracket.

Easy to start, easy to tune and promising years of reliable service the Force 46 is more than a match for your Sunday hack or sport aerobat and it won’t break the bank.

Specification:

• Displacement (cc): 7.45
• Bore (mm): 22
• Stroke (mm): 19.6
• Weight (g): 371.5
• Fuel: Glow
• Nitro content: 5 – 15%

Weights & Dimensions
Weight 371.5g 13.10oz
